42BLW Series 3-Phase 16 Poles 24V 30W 50W 70W Outer Rotor Brushless DC Motor

Type: Outer Rotor Brushless DC Motor

Motor Length: 18mm / 21mm / 27mm

Rated voltage:24V

  • 45BLW Outer Rotor Brushless BLDC DC Motor

  • 3 phase

  • 24V

  • 10 Pcs



No price
Cumulative sales0Cumulative evaluation0
Quantity
- +
Collect
产品编号 42BLW

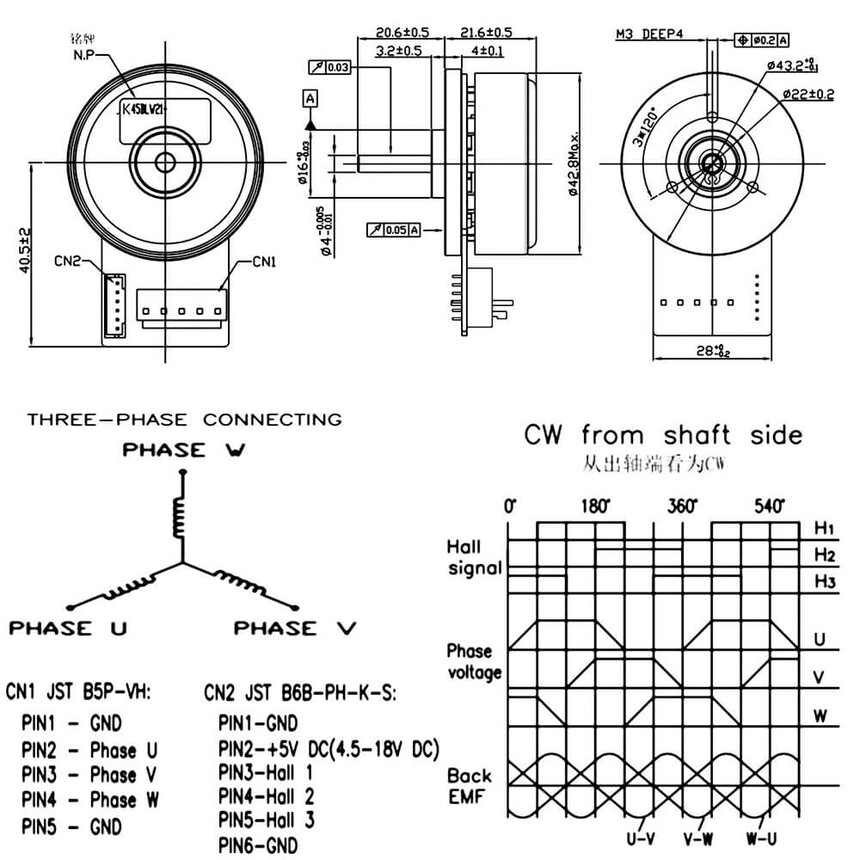

General description

24V 42BLW Outer Rotor Brushless DC Motor:

General Specifications

ItemSpecification
Winding typeStar
Hall effect angle120 degree electrical angle
Radial play0.02mm@450g
Axial play0.14mm@450g
Max.radial force20N@10mm from the flange
Max. axial force10N
Insulation classClass B
Dielectric Strength600VAC/1S
Insulation Resistance100MΩ Min., 500VDC


Outer Rotor Brushless Motor Electrical Specifications:

SpecificationUnitModel
45BLW18-24V-6530A45BLW18-24V-7130A45BLW21-24V-6750A45BLW27-24V-6170A
Axial forceN10
Insulation class
B
Number of phasesphase3
Number of polespole16
Shaft diametermm4
Supply voltageV DC24
Front sizemm42.8454545
InductancemH0.590.590.330.27
Lengthmm18182127
Max currentA4.84.37.411
Max. torqueNm0.150.150.250.39
Moment of inertiag.cm²99100135181
Nominal speedrpm5000500052604840
Nominal torqueNm0.050.050.0840.13
PowerW30305070
Radial forceN28202020
ResistanceΩ1.421.420.720.56
Returning voltage EMKVrms/krmp2.612.612.55275
Torque constantmNm/A35.335.234.437.1
Weightkg0.080.080.120.15
